MÁY ĐO THỂ TÍCH KHÍ CO2 MODEL: SS-60
MODEL: SS-60
ZAHM & NAGEL - Mỹ
12 Tháng
MÁY ĐO THỂ TÍCH KHÍ CO2
Model: SS-60
Hãng SX: ZAHM & NAGEL
Xuất xứ: Mỹ
Hàng có sẵn
MÁY ĐO THỂ TÍCH KHÍ CO2
Model: SS-60
Hãng SX: ZAHM & NAGEL
Xuất xứ: Mỹ

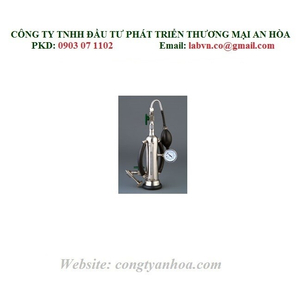

The Zahm SS-60 Volume Meter was developed to determine average CO2 levels of gas in tank stored beverages. Its improved design over the older Zahm-Hartung Volume Meter (Series 2000) greatly improves accuracy and time required to run a test. A precise piston release mechanism eliminates bleeding off of the sample and the potential for human error. Samples undergo repeatable, precise volumetric expansion test after test for more accurate measurements. The lightweight design reduces operator fatigue while the stainless steel construction increases strength and resists corrosion. The thermometer may also be replaced in the field without the need to return it to the factory for replacement. The parts list and line drawing should be used when ordering replacement parts or operating the instrument.
| 1000 | SS-60 Volume Meter | 1017 | Thermometer Guard Screw (2 ea.) |
1040 |
Vent Cock Swivel |
| 1001 | Body | 1018 | Thermometer Cushion Ring (2 ea.) | 1042 | Aspirator Bulb |
| 1002 | Base | 1019 | Thermometer Seal Ring (2 ea.) | 1042-A | Aspirator Bulb "O" Ring |
| 1003 | Base Shield | 1020-B | Valve (2 ea.) | 1045 | Gooseneck |
| 1004-A | Neck Shield | 1021 | Clamping Device Assembly | 1048 | Clamp Handle Assembly |
| 1005 | Piston | 1022 | Clamping Device Body | 1048-1 | Front Brace |
| 1006 | Piston Body | 1023 | Clamping Device Yoke | 1048-2 | Milled Brace |
| 1007 | Piston Handle | 1024 | Clamping Device Screw | 1048-3 | Rear Brace (2 ea.) |
| 1008 | Piston Lock Pin | 1025 | Clamping Device Gasket | 1048-4 | Screw - Left Side (2 ea.) |
| 1009 | Piston "O" Ring | 1029 | Pressure Guage | 1048-4A | Screw - Right Side (2 ea.) |
| 1010 | Piston Body Gasket | 1036 | Sight Glass | 1048-5 | Lock Washer (6 ea.) |
| 1011 | Base Screw (6 ea.) | 1037 | Sight Glass Cage | 1048-6 | Cap Nut (4 ea.) |
| 1012 | Thermometer | 1038-A | Sight Glas Gasket (Top) | 1048-7 | Handle w/Rubber Sleeve (2 ea.) |
| 1016 | Thermometer Guard | 1038-B | Sight Glass Gasket (Bottom) |
